DMS
TECHNOLOGIES VARLEY SEALED
LEAD BATTERIES |
|
Not
all batteries are the same. |
 |
| Due to the
increased number of lead plates used in their
construction, Red Top batteries give over 30% better high
rate (engine start) performance than any other dry cell
batteries.
Red Top batteries are
suitable for high performance ignition systems because of
their stable voltage profile.
They require no topping up,
are lightweight and can be installed in an orientation.
| Red
Top 15 |
$259.00 |
| Red
Top 30 |
375.00
|
|
|
 |
|
Varley Red Top
Battery Specifications |
| Type |
Amp
Hour |
Weight |
Length |
Width |
Height |
Cranking
Current |
| Red Top 15 |
14 |
11.00
lbs. |
7.90" |
3.00" |
5.40" |
550A |
| Red Top 30 |
26 |
19.80
lbs. |
9.80" |
3.80" |
6.00" |
850A
|
| SBS
SEALED LEAD BATTERIES |
| Ideal for
ford 1600 and 2000 engines, any small bore engines. They are
especially popular in Swift and Van Diemen Cars. As with the
Varley batteries, they require no topping up, are lightweight and
can be installed in an orientation.
|
|
18AH
|
26AH
|
| Type |
Amp
Hour |
Weight |
Length |
Width |
Height |
Price |
| SBS18 |
18 |
13.10
lbs. |
7.13" |
3.00" |
6.57" |
$99.95 |
| SBS26 |
26 |
18.05
lbs. |
6.50" |
6.86" |
4.94" |
124.95
|
|

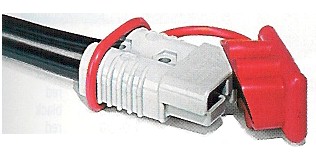

AUXILIARY
BATTERY QUICK DISCONNECT (175A) 21/4"
x 41/4" |
|
Use the auxiliary battery
connection to jump start your car rather than using the on board
battery. To assemble, crimp or use solder using a propane torch to
attach the wire into the terminal. The 175A terminals are fit for 1/0
wire. Wire bushings are available to reduce the wire size to #4.
Slip and snap the terminal into the the connector. These connectors
cannot be connected in reverse polarity. Purchase one for your car and
one for your auxiliary battery. Use the connector cover to deep dirt
and debris out of the connector. |
|
|
   |
|
Finally, do not let brake clean get
anywhere near these connectors!
The connectors will crack and fall
apart before your eyes! |
|
L-3028-S |
Set with Handle |
$29.99 |
|
L-3027 |
175A Connector With Terminals |
13.50 |
|
L-3029 |
Handle |
7.99 |
|
L-3030-4
|
Wire Reducer (from 1/0 to #4
Wire) |
2.39
|
|
L-3027C |
Red Connector Cover |
2.89
|
|
Auxillary Battery
Quick Disconnect (50A) 11/2" x 2" |
|
This connector has
the same features as the 175A connector, but much smaller for
tight locations. Either size will effectively do the
same job for any type of car.
|
|
L-30255
|
50A Connector with Terminals |
$7.99
|
|
L-3025C |
Connector Cover |
2.89 |
|
|
|
|
