CM
SERIES MALE |
| BODY: |
Low carbon steel,
protective coated for corrosion resistance. |
| BALL: |
Sintered steel, heat
treated, oil impregnated. |
|
General
Purpose, Economy. |
| Note: |
Right
hand male CM series.
Left hand male CB series.
LH and RH are the same price. |
|
|
. |
 |

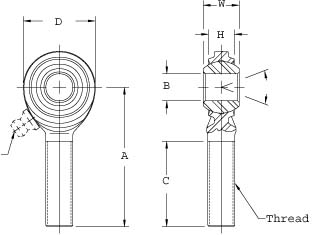

| CM
Series |
B |
Thread |
W |
H |
A |
D |
Radial
Static Load Capacity |
Price |
CM-3 |
.1900 |
10-32 |
.312 |
.234 |
1.250 |
.625 |
1,204 |
$4.95 |
CM-4 |
.2500 |
1/4-28 |
.375 |
.250 |
1.562 |
.750 |
2,212 |
5.95 |
CM-5 |
.3125 |
5/16-24 |
.437 |
.312 |
1.875 |
.875 |
3,577 |
7.95 |
CM-6 |
.3750 |
3/8-24 |
.500 |
.359 |
1.938 |
1.000 |
5,068 |
9.95 |
CM-7 |
.4375 |
7/16-20 |
.562 |
.406 |
2.125 |
1.125 |
6,345 |
11.95 |
CM-8 |
.5000 |
1/2-20 |
.625 |
.453 |
2.438 |
1.312 |
8,338 |
12.95 |
CM-10 |
.6250 |
5/8-18 |
.750 |
.484 |
2.265 |
1.500 |
9,713 |
13.95 |
CM-12 |
.7500 |
3/4-16 |
.875 |
.593 |
2.875 |
1.750 |
14,207 |
14.95
|
|
VCM SERIES |
|
| BODY: |
Low carbon steel, protective
coated for corrosion resistance, PTFE (Teflon) lined |
| BALL: |
Sintered steel, heat treated,
oil impregnated. |
|
General Purpose,
Economy. |
| Note: |
Right hand male
VCM series.
Left hand male VCB series.
LH and RH are the same price. |
|
|
|
| VCM
SERIES |
B |
Thread |
W |
H |
A |
D |
Radial
Static Load Capacity |
Price |
| VCM-5 |
.3175 |
5/16-24 |
.437 |
.312 |
1.875 |
.875 |
2,623 |
$7.95 |
| VCM-6 |
.3750 |
3/8-24 |
.500 |
.359 |
1.938 |
1.000 |
3,643 |
8.95 |
| VCM-7 |
.4370 |
7/16-20 |
.562 |
.406 |
2.125 |
1.125 |
4,464 |
9.95 |
| VCM-8 |
.5000 |
1/2-20 |
.625 |
.453 |
2.438 |
1.312 |
7,229 |
11.95 |
| VCM-10 |
.6250 |
5/8-18 |
.750 |
.484 |
2.625 |
1.500 |
8,204 |
13.95 |
| VCM-12 |
.7500 |
3/4-16 |
.875 |
.593 |
2.875 |
1.750 |
12,280 |
15.95 |
|
